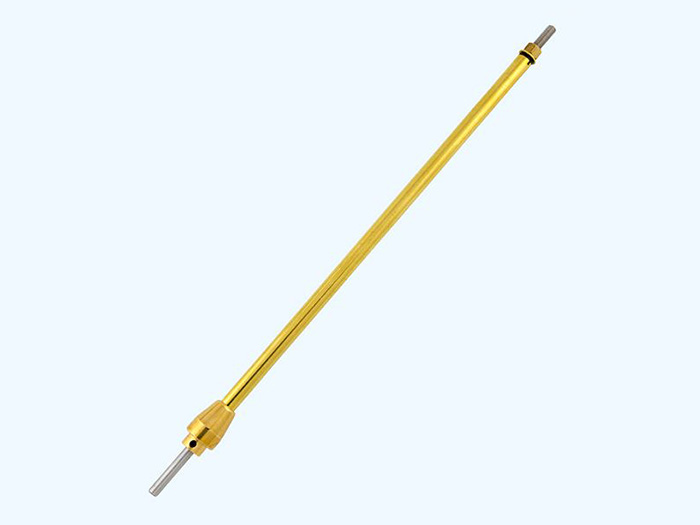

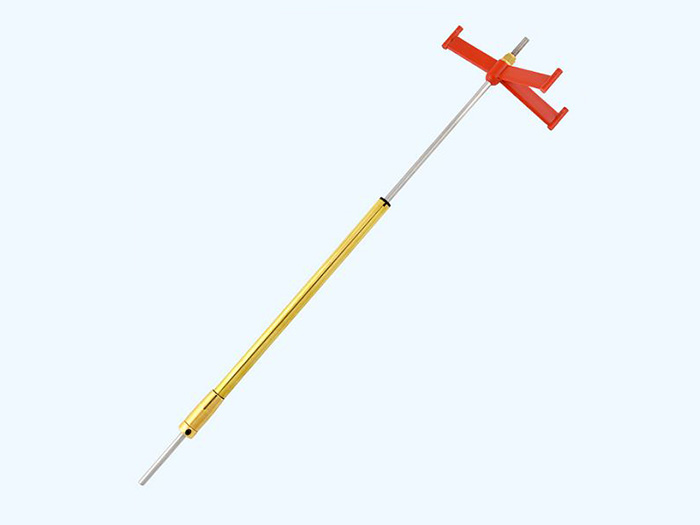

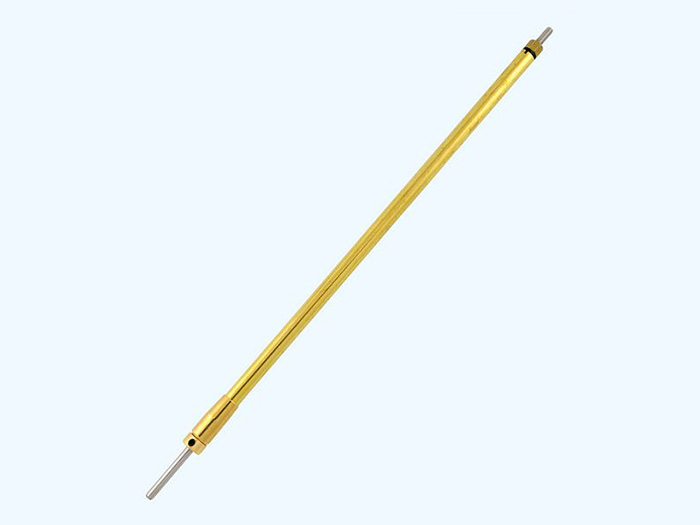

330mm exposed propshaft with support;
Support legs can be removed.
The propshaft is sealed with an O-ring.
Bronze bearing at engine and Delrin at propeller.
The propshaft can be shortened.
- Shaft tube length (A): max. 153mm
- Shaft full length (B): max. 330mm
- Shaft tube Ø (C): 8mm
- Shaft Ø plain (D): 4mm
- Shaft Ø thread (E): M4
- Support I strut (H): 43.5mm
- Support V strut (I): 38.5mm
- Support outer diameter (K): 9.5mm
- Max. speed: 15,000 RPM
