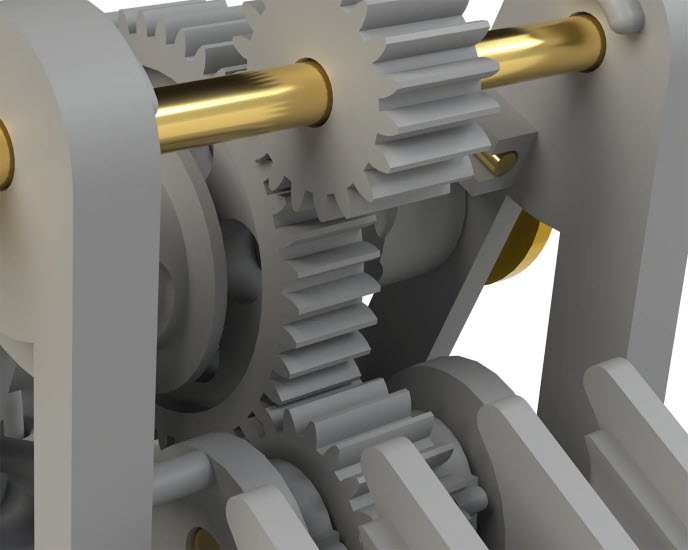

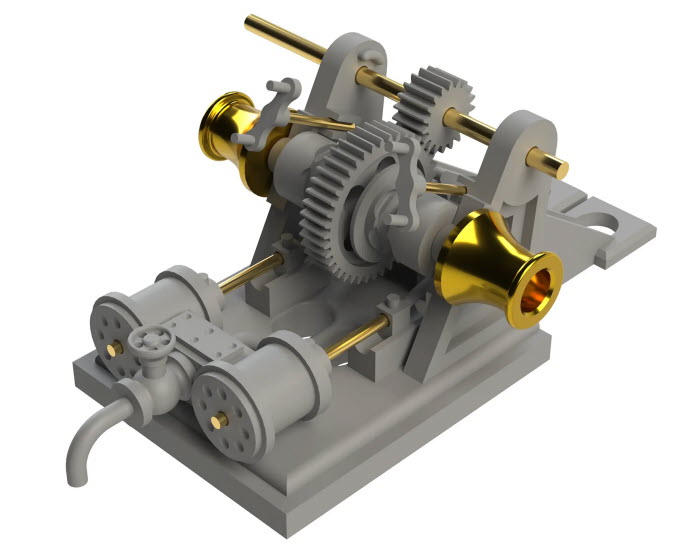

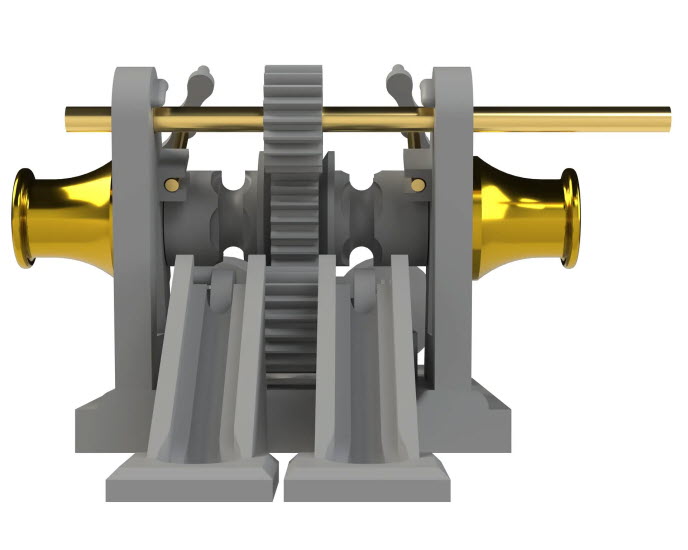

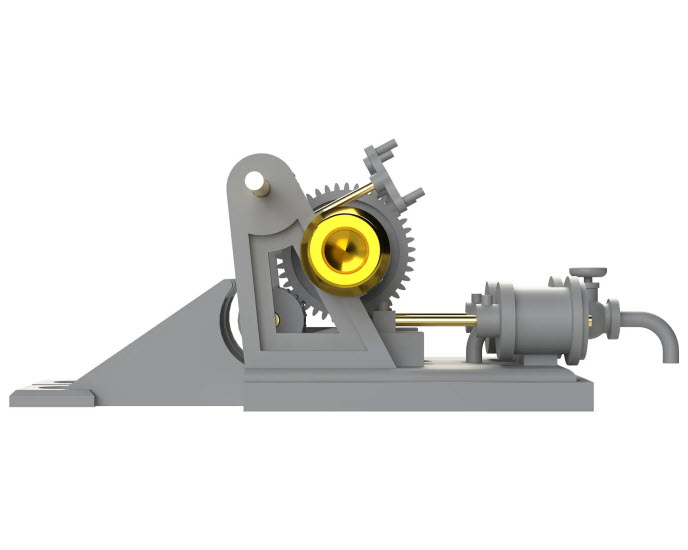

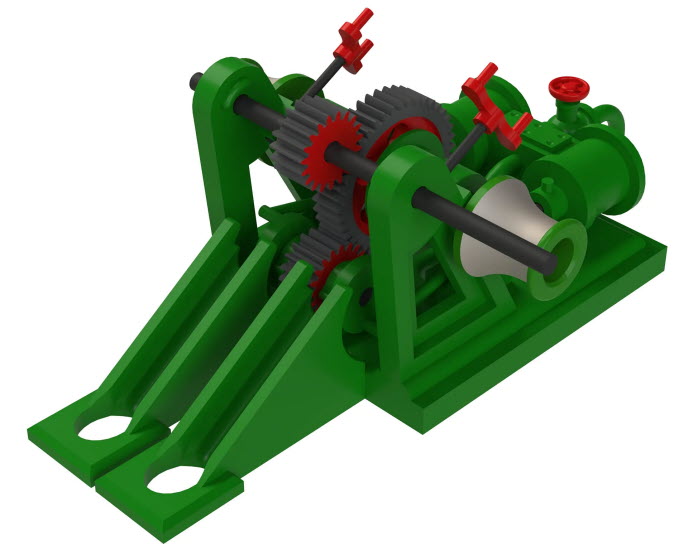

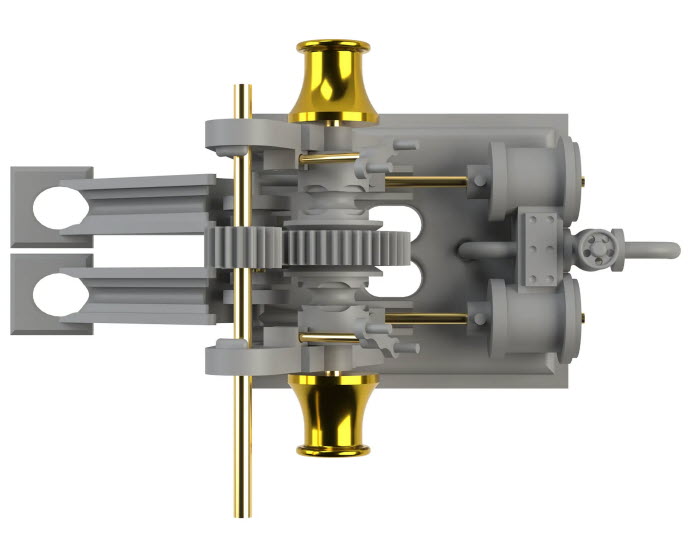

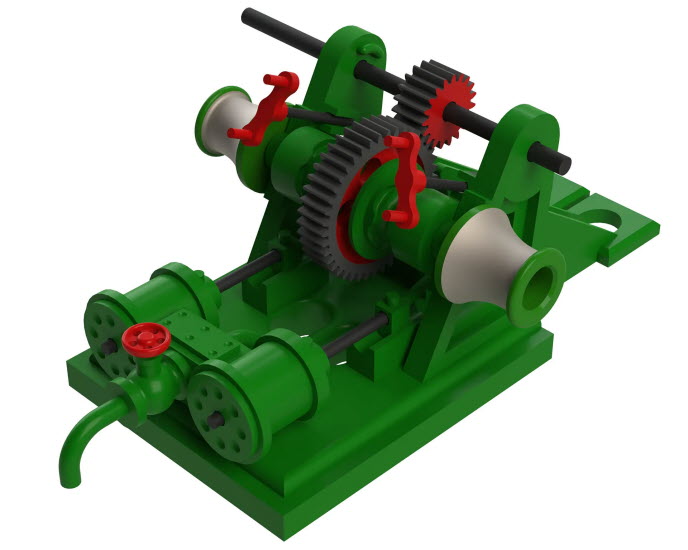

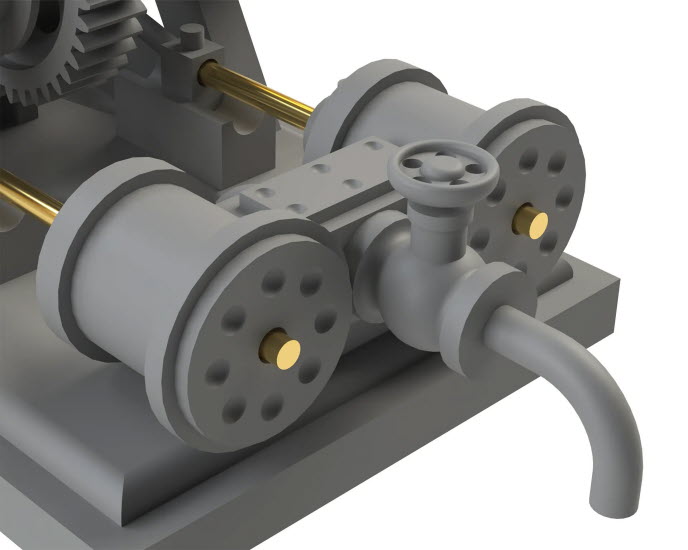

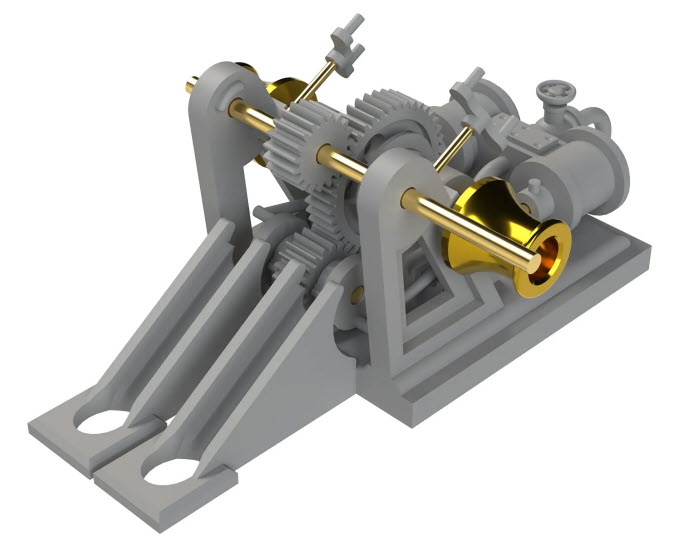

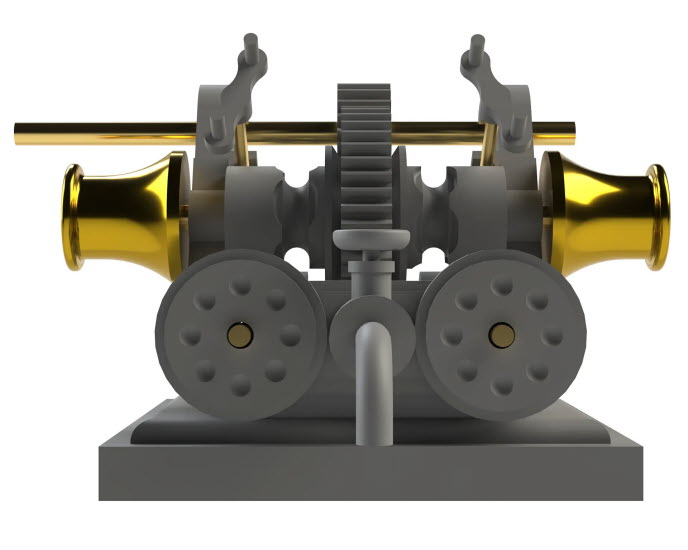

A small twin horizontal design anchor windlass. Featuring twin horizontal cylinders, steam valve, base plate and open webbed framing. Fully meshed drive and pinion gear and hand cranking gear. Twin chain handling gypsy wheels and turned brass rope drums with brake handles make this a truly versatile windlass. The assembly is completed by a pair of chain guides, incorporating deck hawsepipe holes.

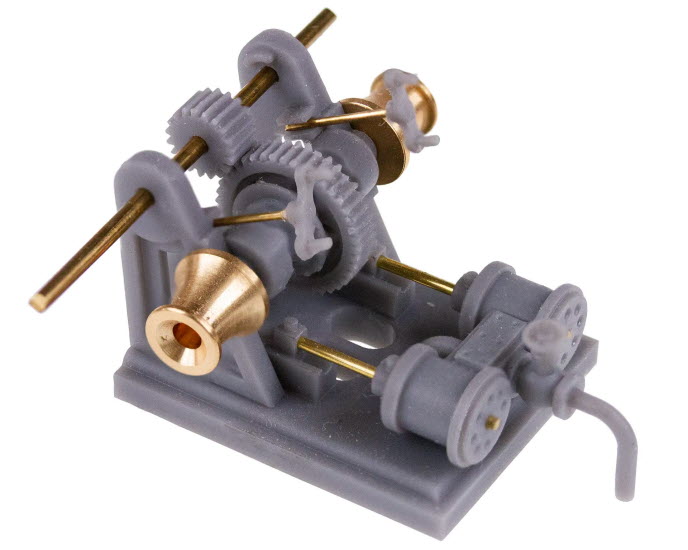

Product image shows windlass without the supplied chain guides. Stated dimensions are excluding deck chain guides which add 20mm to the overall length.

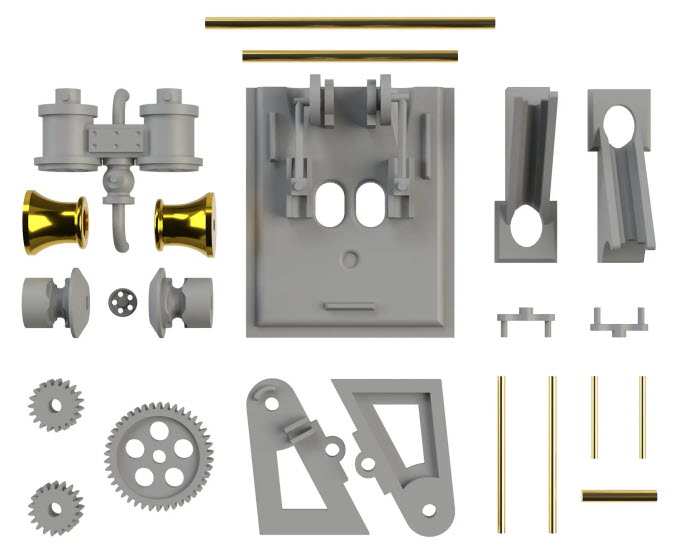

Includes:
Base Plate x1
Valve & Cylinder Assembly x1
Pinion Gear x2
Resin LH Side Frame x1
Resin RH Side Frame x1
Valve Handle x1
Drive Gear x1
Chain Handling Gypsy Wheel x2
Brass Rope Drum x2
Brake Handle x2
Chain Guide x2
Various Brass Rods as Necessary
A4 Step by Step Instruction Manual
